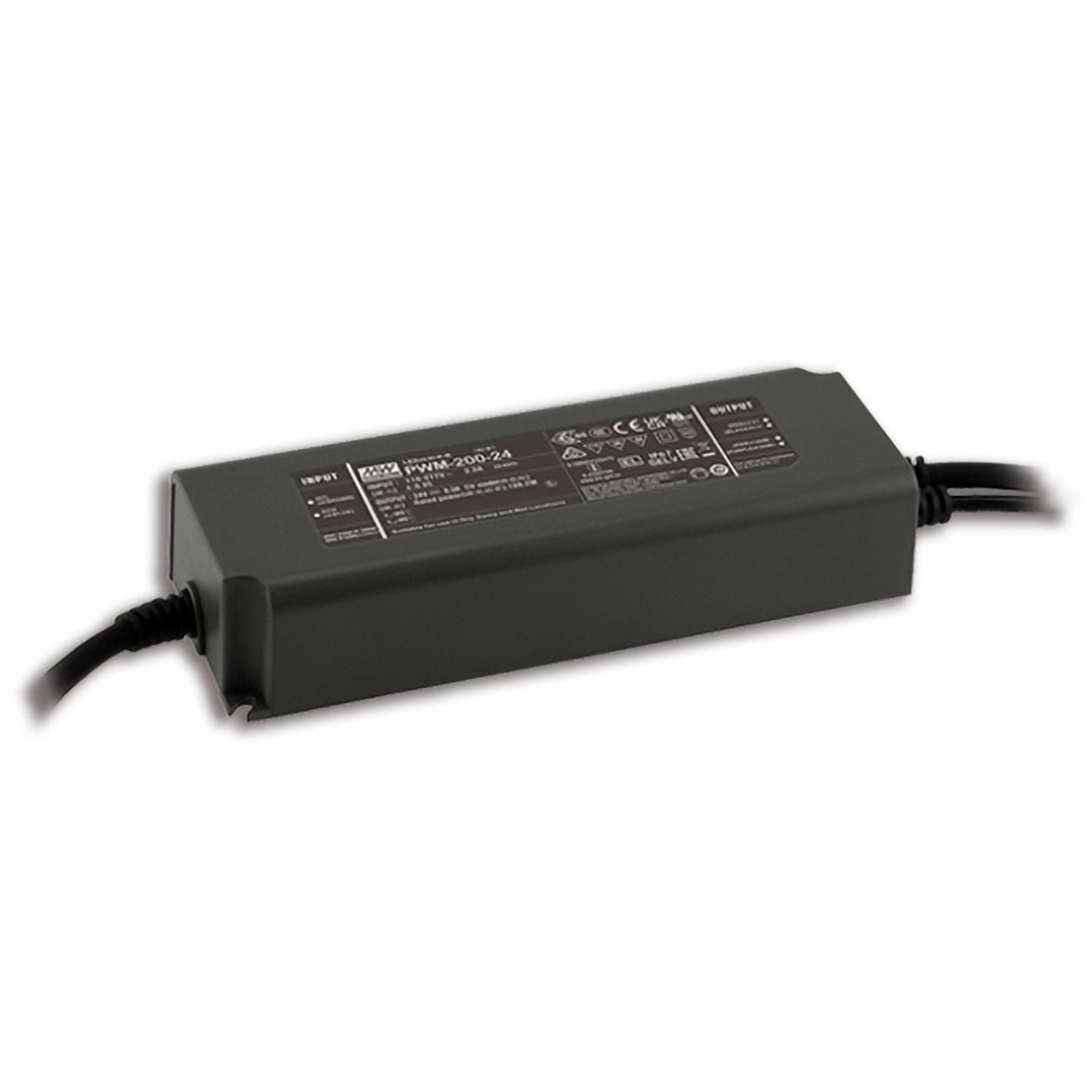

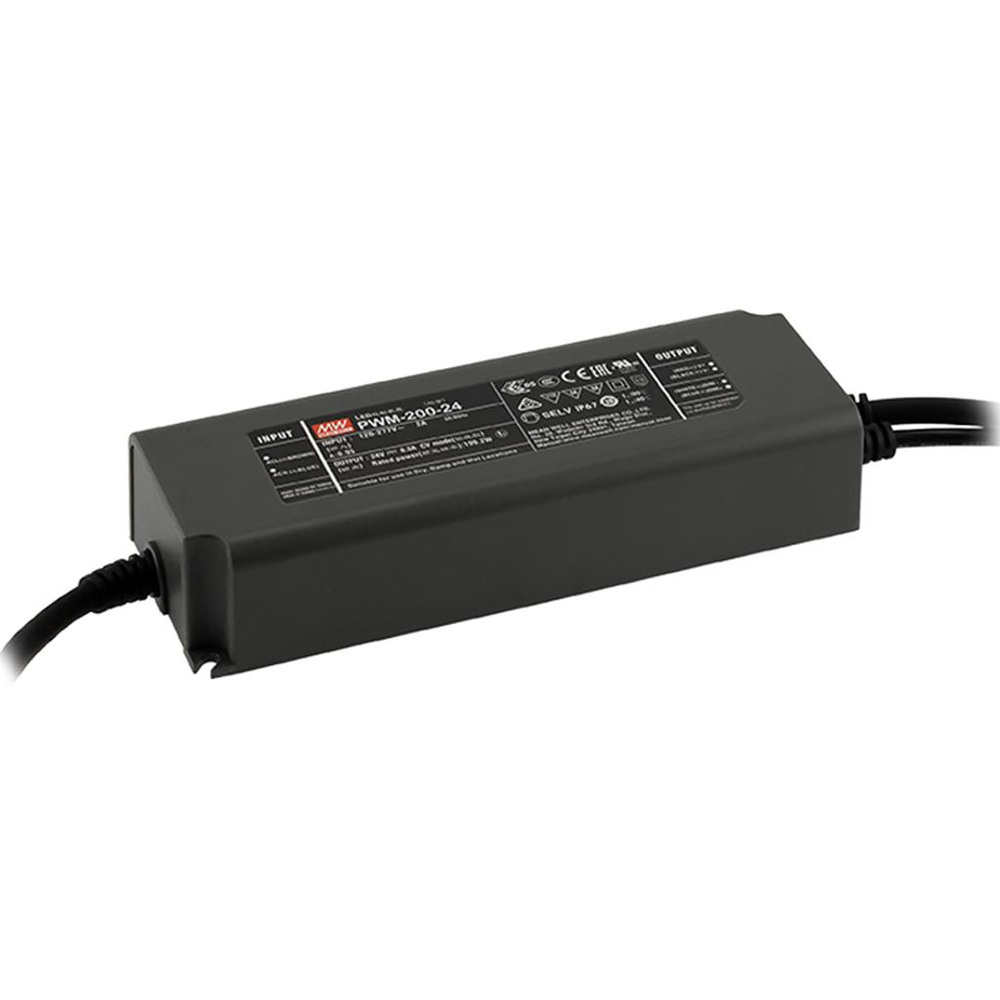

Mean Well PWM-200-24
Article number:
PWM-200-24
Article GTIN:
4711287460147
Downloads
AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 8.3A; Dimming with 0-10V PWM resistance; IP67
Properties
- Series: PWM-200
- Brand: Mean Well
- Dimensions LxWxH (mm): 195x68x39.5 mm
- Warranty: 60 Months Bring-In
- Gross weight: 1030
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 200
- Input voltage (V): 100 - 305
- Min. input voltage: 100
- Max. input voltage (V): 305
- Max. output current (A): 8.3
- Number of output currents: 1
- IP rating: IP67
- LED driver: Yes
- Dimming technologies: 0-10V, PWM, Resistance
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 12.44
