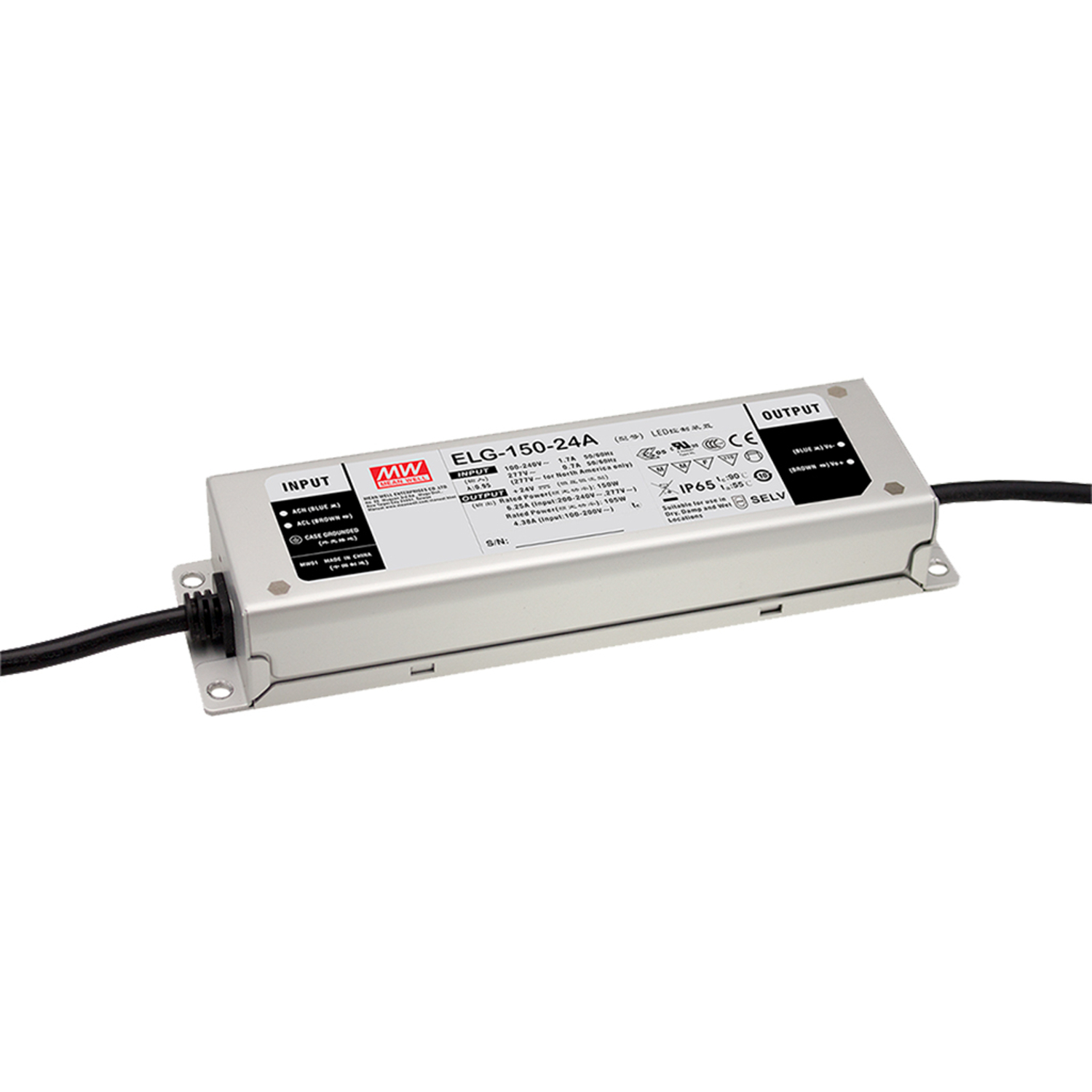

Mean Well ELG-150-24DA-3Y
Article number:
ELG-150-24DA-3Y
Article GTIN:
4711287441252
Downloads
AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC; 3 wire input; Output 24VDC at 6.25A; Dimming with DALI control technology; IP67; Cable output
Properties
- Series: ELG-150
- Brand: Mean Well
- Dimensions LxWxH (mm): 219x63x35.5 mm
- Warranty: 60 Months Bring-in
- Gross weight: 926.67
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 150
- Input voltage (V): 100 - 305
- Min. input voltage: 100
- Max. input voltage (V): 305
- Max. output current (A): 6.25
- Number of output currents: 1
- IP rating: IP67
- LED driver: Yes
- Dimming technologies: DALI
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 10.53
